22JX10K/22ZWN45

Motor Technical DataTYPENumberof polesNumber of phase RatedVoltageVDCNo-loadSpee...

Material of the internal gear ring
22JX10K/22ZWN45: Metal material
Diameter: Φ22mm planetary reducer
Allowable torque range: 0.05N.m to 0.5N.m

Online Contact

PDF Download

product details

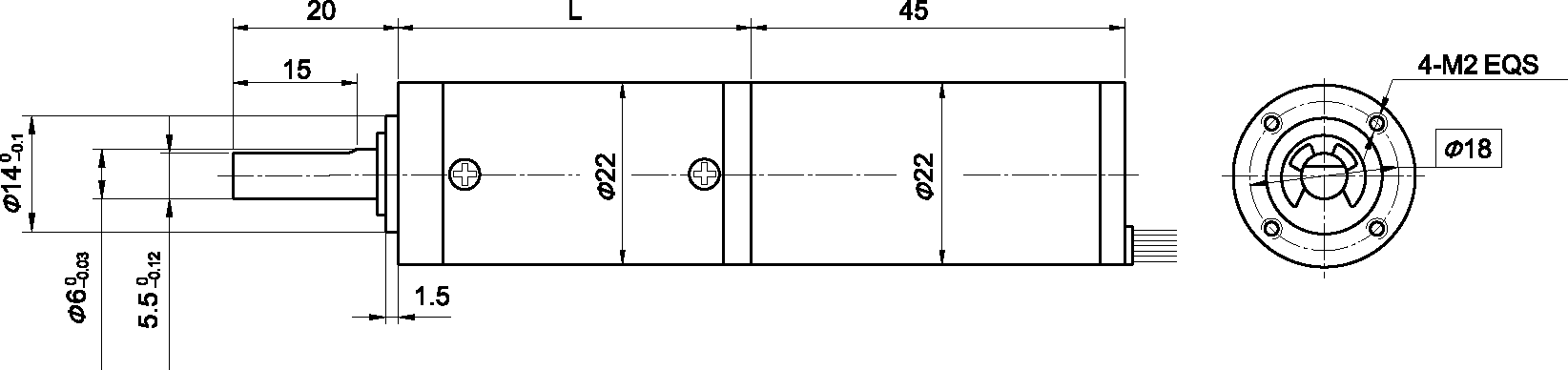

Outline reference diagram

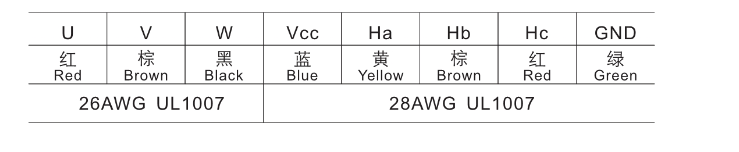

Motor Technical Data

TYPE

Number

of poles

Number

of phase

Rated

Voltage

VDC

No-load

Speed

r/min

Rated

Speed

r/min

Rated

Torque

mN.m

Rated

Power

W

Reak

Torque

mN.m

Peak

Current

A

Line to line resistance ohms

Line to line inductance mH

22ZWN45-2470

8

3

24

7000

4600

8.0

3.8

21

1.1

23

6.2

Brushless Gear Motor Technical Data

22ZWN45-2470 BLDC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	24.4	24.4	33	33	31	41.5	41.5	41.5	41.5	49.8	49.8	49.8
No-load speed r/min	1887	1351	500	368	259	137	99	70	50	37	27	19
Rated speed rAnin	1240	888	329	242	170	90	65	46	33	24	17	12
Rated torque N.m	0.027	0.037	0.091	0.12	0.17	0.30	0.41	0.58	0.80	1	1	1
N.m Max. permissible load in a short time	0.3	0.3	1.2	1.2	1.2	2.5	2.5	2.5	2.5	3	3	3
